In environmental engineering, industrial safety, and process design, a plume flow is a critical fluid structure responsible for transport and mixing. Whether evaluating the dispersion of hazardous gases from a refinery exhaust stack, tracking the thermal behavior of a subsea oil blowout, or designing localized extraction hoods for a manufacturing floor, the core engineering goal is identical: to accurately map how a concentrated localized fluid discharge expands and dilutes into a surrounding ambient environment.
Operating an industrial process safely requires achieving predictable dispersion paths while strictly managing contamination limits and thermal safety boundaries. Because field scaling is notoriously complex and ambient atmospheric or oceanic conditions are highly volatile, engineering teams rely heavily on Computational Fluid Dynamics (CFD)
to predict pollutant concentrations, evaluate emergency vent paths, and design targeted mitigation arrays.
However, simulating a plume flow is an exceptionally deceptive, highly multi-scale fluid mechanics challenge. A plume does not expand as a smooth, continuous cone. It travels as a highly transient, buoyant mass that interacts with external cross-flows to generate a violent spectrum of swirling eddies. If your simulation setup flattens these dynamic interactions into steady-state formulations, your solver will suffer from smeared shear layers and artificial dispersion—leaving your design team blind to efficiency-killing localized concentration spikes.
1. The Physics Anchor: Buoyancy-To-Momentum Ratios and Shear-Layer Vortices
The multi-phase and multi-component fluid dynamics of a plume flow are governed by the Navier-Stokes and species transport equations tightly coupled with a Buoyancy-Modified Energy Framework. The fluid path transitions rapidly across an aggressive shear layer discontinuity:
[Fluid Discharges From Source] ➔ [Encounters Ambient Density Discontinuity] ➔ [Shear Layer Triggers Kelvin-Helmholtz Instabilities] ➔ [Vortices Entrain Surrounding Ambient Fluid] ➔ [Plume Expands and Meanders Transiently]
- The Richardson Number (Ri) Metric: The spatial trajectory of a plume is defined by its Richardson number, which mathematically dictates the balance between buoyancy-driven forces (density deltas) and inertial momentum forces:Ri = (g * beta * Delta T * L) / V^2Where g is gravitational acceleration, beta is the thermal expansion coefficient, Delta T is the temperature delta between the plume and ambient fluid, L is the characteristic length scale, and V is the discharge velocity.
- The Buoyant Jet Transition: If Ri is low, the flow acts as a pure momentum-driven jet. As Ri escalates, buoyancy dominates, and the fluid undergoes a rapid transition into a buoyant plume.
- The Kelvin-Helmholtz Discontinuity: The steep velocity and density mismatch between the rising plume core and the stagnant ambient air creates a severe shear layer. This interface instantly triggers Kelvin-Helmholtz instabilities, rolling the outer edge of the plume into a chaotic sequence of toroidal vortices. These vortices act as mechanical fluid pumps, aggressively entraining the ambient fluid into the core, which drives the plume’s expansion and causes it to meander dynamically.
2. Industry Context: Where Precision Dispersion Controls Capital Integrity
Optimizing plume paths and achieving precise concentration mapping through high-fidelity CFD directly dictates the environmental compliance, safety certifications, and operational boundaries of heavy industrial operations:
- Refinery and Petrochemical Flare Stack Venting: Facilities must exhaust combustion products or safely vent emergency hydrocarbon drops. Engineers use multi-component CFD to map the thermal and chemical plume, ensuring toxic or flammable gases dilute safely below explosive limits before hitting downstream structures or ground-level personnel.
- Subsea Oil and Gas Blowout Tracking: When an offshore well suffering a blowout releases high-pressure gas and oil into the deep ocean, a massive multi-phase plume rises through the water column. Engineers deploy transient buoyant plume models to predict the exact surface location of the oil slick, allowing containment fleets to position surface capping stacks accurately.
- Data Center Server Rack Exhaust Arrays: High-density server deployments exhaust massive amounts of hot air into the containment aisles. Designers use detailed plume CFD to optimize hot-aisle containment geometries, preventing the hot thermal exhaust plumes from short-circuiting back into the cold-aisle intakes, which would trigger immediate server thermal throttling.
3. The Traps & Friction: Why Plume Flow CFD Fails
Predicting the exact concentration fields and real-world meandering paths requires avoiding severe numerical and modeling shortcuts. Defaulting to standard configurations leads to three severe traps:
Relying Solely on Steady-State RANS Solvers
To minimize massive processing times across sprawling plant layouts, engineers frequently make the mistake of running plume simulations using steady-state Reynolds-Averaged Navier-Stokes (RANS) equations paired with standard two-equation turbulence models. While RANS is highly efficient, it is fundamentally incapable of capturing the transient physics of plume meandering. RANS artificially stabilizes the flow, “smearing” the transient trailing vortices into a continuous, static vapor cloud. RANS notoriously over-predicts the lateral fluid spreading and under-predicts peak core concentrations, outputting overly optimistic dilution data that fails during physical safety audits.
Utilizing Standard, Uncalibrated Turbulent Schmidt Number Formulations
The transport of a chemical or thermal species inside a plume relies heavily on the Turbulent Schmidt Number (Sc_t), which defines the ratio of turbulent momentum diffusivity to turbulent mass diffusivity. Most commercial CFD packages default to a static value of Sc_t = 0.7. However, inside a buoyant plume, the mixing rate shifts dynamically based on local density gradients. If your engineering team uses a fixed, static Schmidt number, the solver will miscalculate the mass transfer rate, predicting that a toxic plume will dilute much faster or slower in your digital model than it can in physical reality.
Under-Resolving the Near-Source Grid and Entrainment Boundaries
The ultimate accuracy of a plume model is determined by how well the grid resolves the initial shear layer where entrainment begins. If your volume mesh is too coarse near the discharge nozzle orifice, the mathematical solver will suffer from severe numerical diffusion, artificially inflating the local velocity data and smoothing out localized concentration spikes. Without micro-scale prism layer grid refinement tracking the plume boundaries paired with a scale-resolving turbulence model, your simulation will completely miscalculate the volume of ambient fluid sucked into the core.
4. Conquering the Buoyant Multi-Phase Boundary

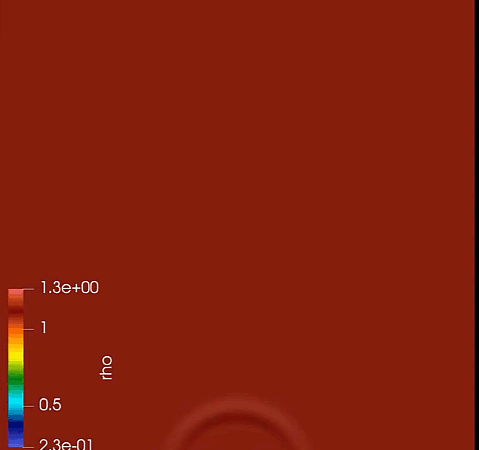

A stunning color concentration animation of an expanding plume layout is completely useless if your digital dilution curves do not correlate with physical field data. Validating your plume flow CFD pipeline requires moving past steady-state shortcuts and deploying transient, scale-resolving fluid workflows, such as Large Eddy Simulation (LES). Your simulation parameters must be cross-referenced against empirical laboratory metrics—such as Laser-Induced Fluorescence (LIF) tracking and Particle Image Velocimetry (PIV) datasets validated on scaled physical models inside boundary-layer fluid chambers—ensuring your buoyant turbulence closures, dynamic Schmidt number profiles, and transient eddy-shedding structures perfectly reflect physical field conditions.
Balancing transient atmospheric or oceanic boundary conditions, non-uniform buoyancy forces, and scale-resolving vortex shedding tracking demands an elite technical workflow. If your environmental design team is facing unexpected regulatory compliance penalties due to localized toxic hotspots, dealing with structural thermal stresses from hot exhaust plumes, or struggling to validate next-generation extraction hood geometries, bringing in a highly targeted technical extension can bridge the operational gap.
