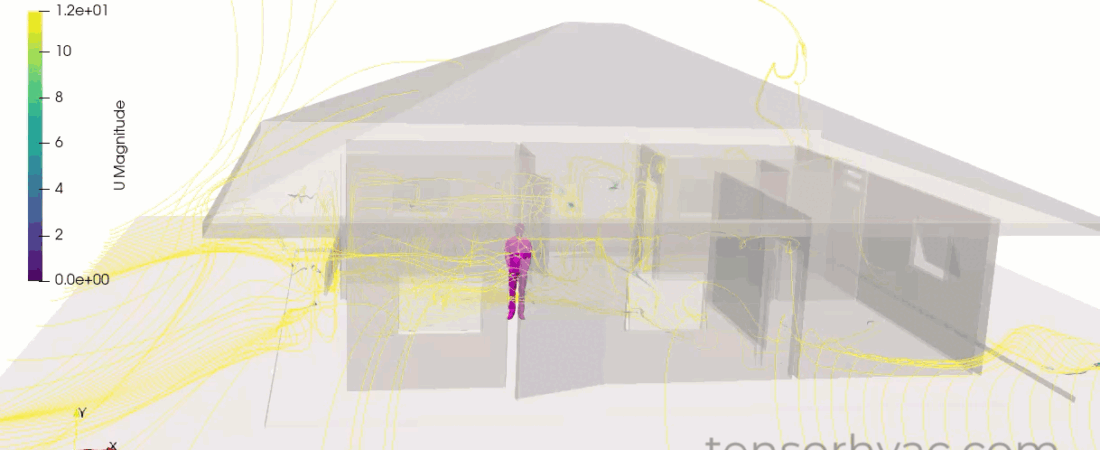

Building external ventilation and microclimate wind management are critical factors in modern architectural and urban planning. As cities densify and high-rise structures proliferate, buildings act as massive bluff bodies that obstruct and redirect atmospheric wind fields. Improperly designed structural envelopes can generate dangerous high-velocity downwashes at ground level—jeopardizing pedestrian safety—or create stagnant aerodynamic wakes that trap hazardous air pollutants and escalate the urban heat island effect. Computational Fluid Dynamics (CFD) provides architects and civil engineers with a digital boundary-layer wind tunnel to visualize complex microclimates, evaluate pedestrian comfort, and refine structural geometries with high precision.
Technical and Theoretical Description
From an aerodynamic perspective, building external ventilation operates on unconfined, high Reynolds number external fluid dynamics governed by the three-dimensional, incompressible Navier-Stokes equations and atmospheric boundary layer (ABL) kinematics. Wind approaching an urban center possesses a non-uniform velocity profile where wind speed increases with altitude, mathematically described via a plain-text power law or logarithmic profile function based on local terrain roughness. Because wind interacting with sharp-edged buildings creates intense flow separation, shear layers, and highly chaotic wake vortices, steady-state approximations are often insufficient. While the Reynolds-Averaged Navier-Stokes (RANS) Realizable k-epsilon or Shear Stress Transport (k-omega SST) models are deployed for initial site sizing, transient Large Eddy Simulation (LES) or Detached Eddy Simulation (DES) is increasingly utilized to resolve the fluctuating wind gusts responsible for mechanical structural loading.
The primary theoretical focus in external ventilation modeling is evaluating pedestrian wind comfort and maximizing natural cross-ventilation potentials. Comfort levels are quantified by extracting localized wind speed velocities at a pedestrian height of 1.5 meters above the ground and evaluating them against international criteria such as the Lawson, Davenport, or NEN 8100 comfort standards. These frameworks define acceptable wind velocity thresholds and exceedance frequencies for activities ranging from outdoor dining to walking. Concurrently, to evaluate natural ventilation potential, the simulation monitors the wind pressure coefficient across the building facade. This coefficient determines the pressure differential between the windward (high pressure) and leeward (low pressure) sides of the structure, driving the internal natural ventilation flow rates via age-of-air and air exchange rate equations when windows or louvers are opened.
Business Value of CFD Implementation
From a commercial and legal standpoint, deploying CFD in urban wind studies yields massive capital expenditure (CapEx) savings and directly accelerates municipal project approval cycles. Many modern metropolitan planning authorities legally mandate high-fidelity wind impact assessments before issuing building permits for towers exceeding specific heights. Historically, this required booking weeks of expensive testing in physical boundary-layer wind tunnels with delicate scale models. CFD acts as a rapid virtual testing laboratory, allowing developer teams to demonstrate regulatory compliance and secure planning permissions months faster, dramatically reducing carrying costs on high-value real estate.
In terms of operational value, an aerodynamically refined building envelope directly enhances property valuation and commercial viability. Minimizing high-velocity ground-level wind downwashes transforms harsh, uninviting concrete plazas into pleasant microclimates, unlocking the commercial potential for high-revenue outdoor retail, dining, and public spaces. Furthermore, maximizing the building’s natural ventilation capability significantly lowers building operational expenditures (OpEx). By utilizing favorable facade pressure distributions to drive passive cooling during shoulder seasons, developers can downsize mechanical HVAC runtimes, slashes annual energy consumption, and earn prestigious global green building certifications like LEED or BREEAM.
Challenges of CFD in External Ventilation Modeling
Despite its analytical power, simulating building external ventilation introduces steep multi-scale physical and numerical challenges. The foremost obstacle is the extreme discrepancy in geometric scales combined with complex boundary layer modeling. The computational domain must extend several kilometers upstream and downstream to capture realistic atmospheric boundary layer development and the surrounding city typography, yet the simulation must simultaneously resolve millimeter-scale architectural features—such as balconies, canopies, and window frames—that heavily dictate local flow separation and pressure coefficients.
Another major hurdle is maintaining the equilibrium of the atmospheric boundary layer across the empty upwind fetch of the domain. If the mesh spacing, roughness wall functions, and turbulence inlet conditions are not perfectly harmonized, the specified wind profile will naturally decay or distort before it ever reaches the target building, invalidating the downstream comfort and pressure results. Furthermore, accounting for transient environmental variables—such as the aerodynamic blockage effect of seasonal urban vegetation and street-level vehicular movement—adds complex momentum-loss parameters that are highly sensitive and difficult to calibrate without extensive empirical data.
Solutions for High-Fidelity Simulation
To overcome these multi-scale and atmospheric boundary layer challenges, modern urban engineering workflows combine strategic spatial discretization with specialized boundary-layer stabilization algorithms. Engineers resolve the vast scale discrepancies by utilizing high-quality unstructured polyhedral or hex-dominant meshing combined with automated Adaptive Mesh Refinement (AMR). The mesh is automatically refined in regions experiencing high velocity and pressure gradients—such as building corners, roof edges, and the pedestrian street canyons—while remaining computationally coarse in the far-field sky and upstream domains.
To prevent atmospheric boundary layer decay, specific user-defined functions (UDFs) are implemented to match the inlet profiles of velocity, turbulent kinetic energy, and dissipation rate perfectly with the wall-roughness values applied to the ground terrain. Urban vegetation, such as rows of trees or green barriers, is efficiently represented using anisotropic porous media models with customized directional drag coefficients derived from empirical canopy-flow data. Finally, to eliminate identified wind hazards or stagnant dead zones, engineers use the CFD environment to virtually iterate geometric architectural changes. This includes testing the addition of ground-level canopies, introducing through-building podium openings (aerodynamic voids), or chamfering sharp building corners. Validating the success of these structural modifications in software guarantees a safe, comfortable, and sustainable urban blueprint before concrete pouring begins.
